Key Features
- Solid epoxy resin construction cast from resin, quartz sand, curing agent, and pigment
- Non-porous, seamless surface that resists bacterial buildup
- Strong heat and flame resistance for high-temperature lab work
- Good chemical resistance against a wide range of common lab reagents
- No paper core, so the surface resists moisture and won’t delaminate
- Available in 16mm, 19mm, and 25mm thicknesses
- Standard and custom colors, including RAL color matching

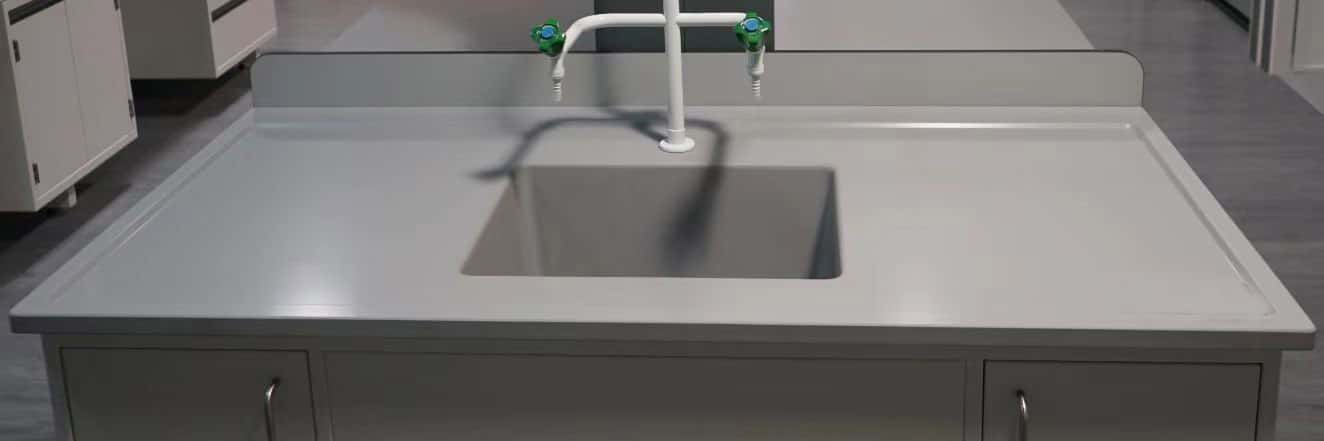

- In-house fabrication: cutting, edge polishing, drilling, and sink cutouts to your drawings
- Repairable and refinishable surface for a long service life
Specifications
| Specification | Detail |
|---|---|
| Model | JH-ER |
| Standard size | 2450mm (L) × 1530mm (W) |
| Thickness options | 16mm / 19mm / 25mm |
| Custom sizes | Available to your drawings and requirements |
| Standard colors | Black, light gray, medium gray, dark gray, white, blue |
| Custom colors | Available per RAL color code |
| Fabrication services | Cutting, edge polishing, drilling, sink cutouts |
| Material composition | Epoxy resin, quartz sand, curing agent, pigment |
We can supply the standard sheet or process it to your finished dimensions. Send us a drawing, and we’ll fabricate the countertop, ready for installation.
Why Choose This Product
Heat resistance for high-temperature procedures
The cured epoxy surface handles direct heat and open-flame work without foaming or cracking. Its flame-retardant properties make it a dependable choice for chemistry and analytical benches.
Chemical resistance for demanding labs
High-temperature baking gives the surface good resistance to many common laboratory chemicals and reagents. For best results, wipe up spills within 24 hours to protect the finish. Final suitability depends on the specific reagents and conditions in your lab.
Moisture resistance that lasts
Because the top contains no paper core, humidity won’t cause peeling or swelling. That keeps the surface stable in damp rooms and near sinks or wet stations.
Long, serviceable life
The solid epoxy body can be sanded, polished, and refinished if it becomes scratched or stained. Minor damage can often be restored on-site, extending the working life of your benches.
Hygienic, low-maintenance surface
The smooth, non-porous finish leaves no gaps for bacteria to collect, making it well-suited to pharmaceutical and biological labs. Routine cleaning takes only a quick wipe-down.
Multiple color options
Choose from standard shades or specify a RAL color to match your lab design. A consistent finish helps you keep a clean, professional look across every bench.
Applications

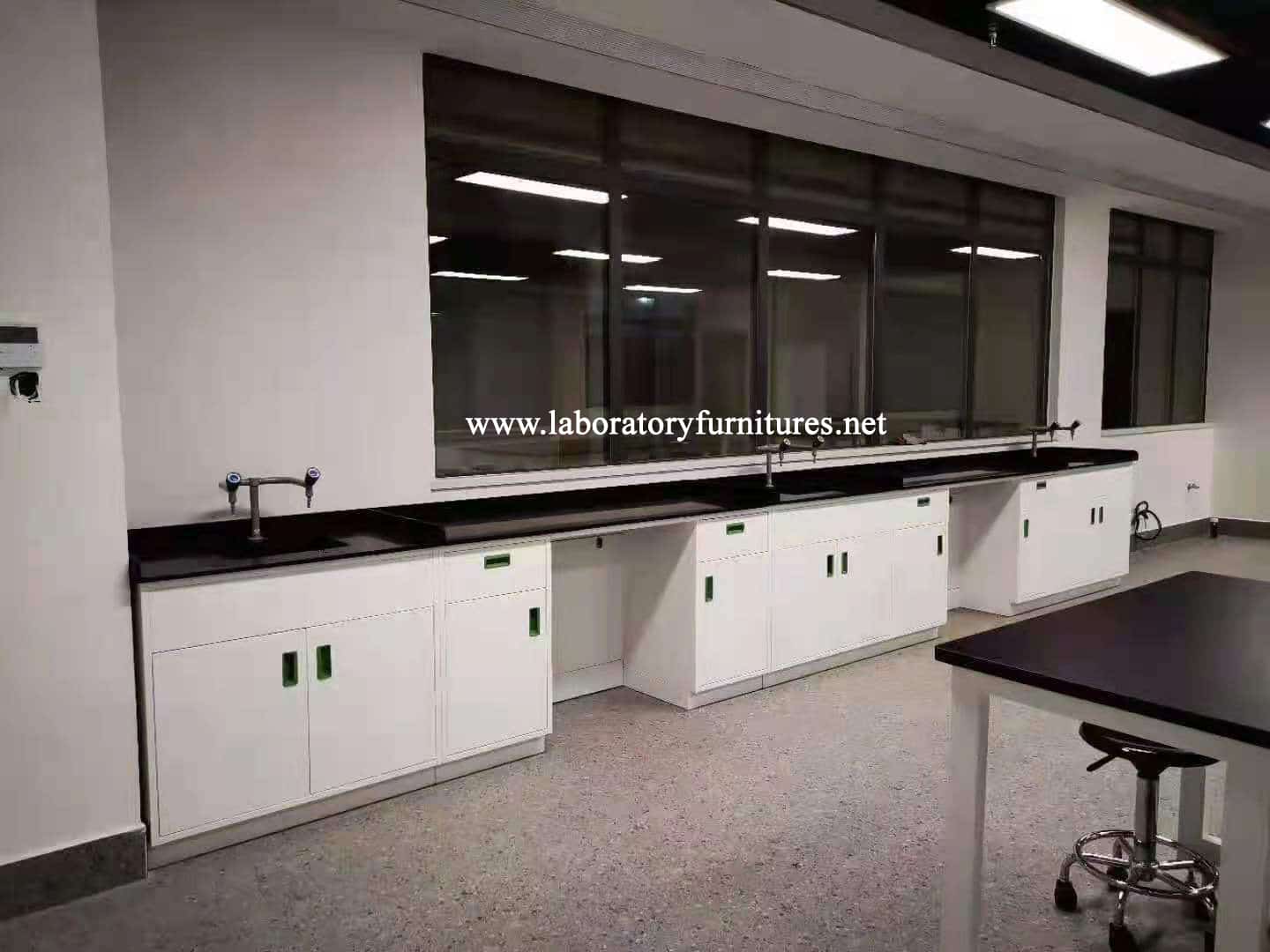

- Schools, universities, and teaching labs
- Pharmaceutical and biological laboratories
- Hospitals and clinical testing rooms
- Electronics factories and assembly areas
- Research institutes and quality-control facilities
Custom Fabrication & Quote Request
We manufacture and finish each epoxy countertop to your specifications. To prepare an accurate quotation, please share:
- CAD drawing or bench layout
- Required dimensions and thickness (16mm / 19mm / 25mm)
- Preferred color or RAL code
- Sink cutouts, drilling, or edge-finishing needs
- Quantity and project timeline
- Any special compliance or application requirements
The more detail you provide, the faster we can confirm the right specification and pricing for your lab.
Frequently Asked Questions
What thicknesses are available for the JH-ER countertop?
The standard options are 16mm, 19mm, and 25mm. We can also produce other thicknesses on request to match your bench design and load requirements.
Can you cut the countertop to a custom size?
Yes. We offer cutting-edge polishing, drilling, and sink cutouts based on your drawings, so each top arrives ready to install. Just send us your dimensions and fabrication details.
How heat-resistant is the epoxy resin surface?
The cured epoxy surface handles direct heat and open-flame work without foaming or cracking, and it is flame-retardant. For extreme or sustained heat, share your process details, and we’ll advise on the best specification.
Which chemicals can the surface handle?
The baked epoxy surface resists many common laboratory reagents. We recommend cleaning spills within 24 hours. Because performance varies by substance and concentration, let us know your main reagents, and we’ll confirm suitability.
What colors can I choose?
Standard colors include black, light gray, medium gray, dark gray, white, and blue. We can also match a specific shade using its RAL code to suit your lab design.
Do you support OEM orders and large lab projects?
Yes. As a China-based manufacturer, Jiangsu Jiahong Laboratory Equipment Co., Ltd. supports OEM production and full turnkey lab fit-outs. Send us your project scope for material recommendations and a complete quotation.
Request Your Custom Epoxy Countertop
Need a durable, heat- and chemical-resistant worktop built to your exact layout? Send us your dimensions, color, and fabrication details, and our team will prepare a tailored quotation with full design support.
