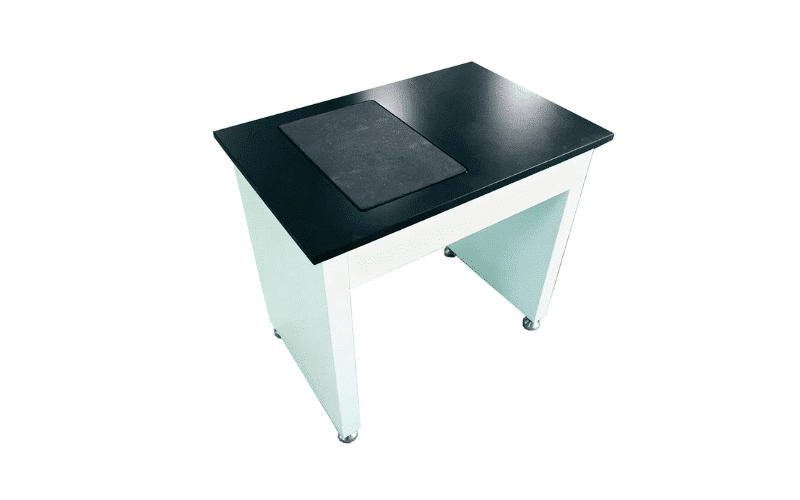

Product Highlights
- Solid three-piece natural marble construction delivers massive rigidity and stability, giving ultra-sensitive balances a surface that resists movement and deflection.
- Substantial ~312 kg total weight anchors the table firmly in place, using mass to absorb vibration and keep your weighing surface dead-steady.

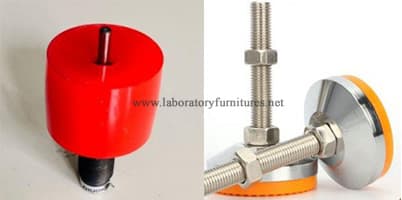

- TPU anti-seismic isolation pads rated to 1000 kg provide compression resistance, aging resistance, and long-term shape retention, helping to reduce ground-induced vibration over the years of use.
- Custom 75-degree PU shock-absorption pads cushion the marble worktop, providing a dedicated buffer layer between the surface and the base.
- Embedded connection technology minimizes the gap between the worktop and the marble foot, creating a tighter, more stable, and safer assembly.
- Purpose-built for extreme precision, this table suits one-millionth and hundred-thousandth analytical and micro balances that demand a low-vibration environment.
Technical Specifications
| Item | Specification |
|---|---|
| Model | JH-BT003 |
| Overall Size | 900 × 600 × 800 mm |
| Worktop Marble Size | 900 × 600 × 80 mm |
| Foot Marble Size | 670 × 500 × 80 mm |
| Construction | Three pieces of pure natural marble |
| Total Weight | Approx. 312 kg |
| Isolation Pads | TPU anti-seismic pads, rated to 1000 kg |
| Shock Absorption | Custom 75-degree PU shock absorption pads |
| Connection Method | Embedded connection technology |
| Isolation Structure | Whole-body isolation |
| Damping Mode | Elastomer |
| Damping Effect 1 | N/A |
| Damping Effect 2 | Approx. 50% (ground vibration, factory tested, maximum value) |
| Suitable For | One-millionth and hundred-thousandth precision balances |
| Installation Note | Requires a flat, level floor |
Damping effect 2 is based on ground-based vibration testing performed in our factory and calculated at the maximum value. Actual vibration reduction may vary depending on floor conditions, balance type, and the surrounding environment. For best performance, install the table on a flat, level floor.

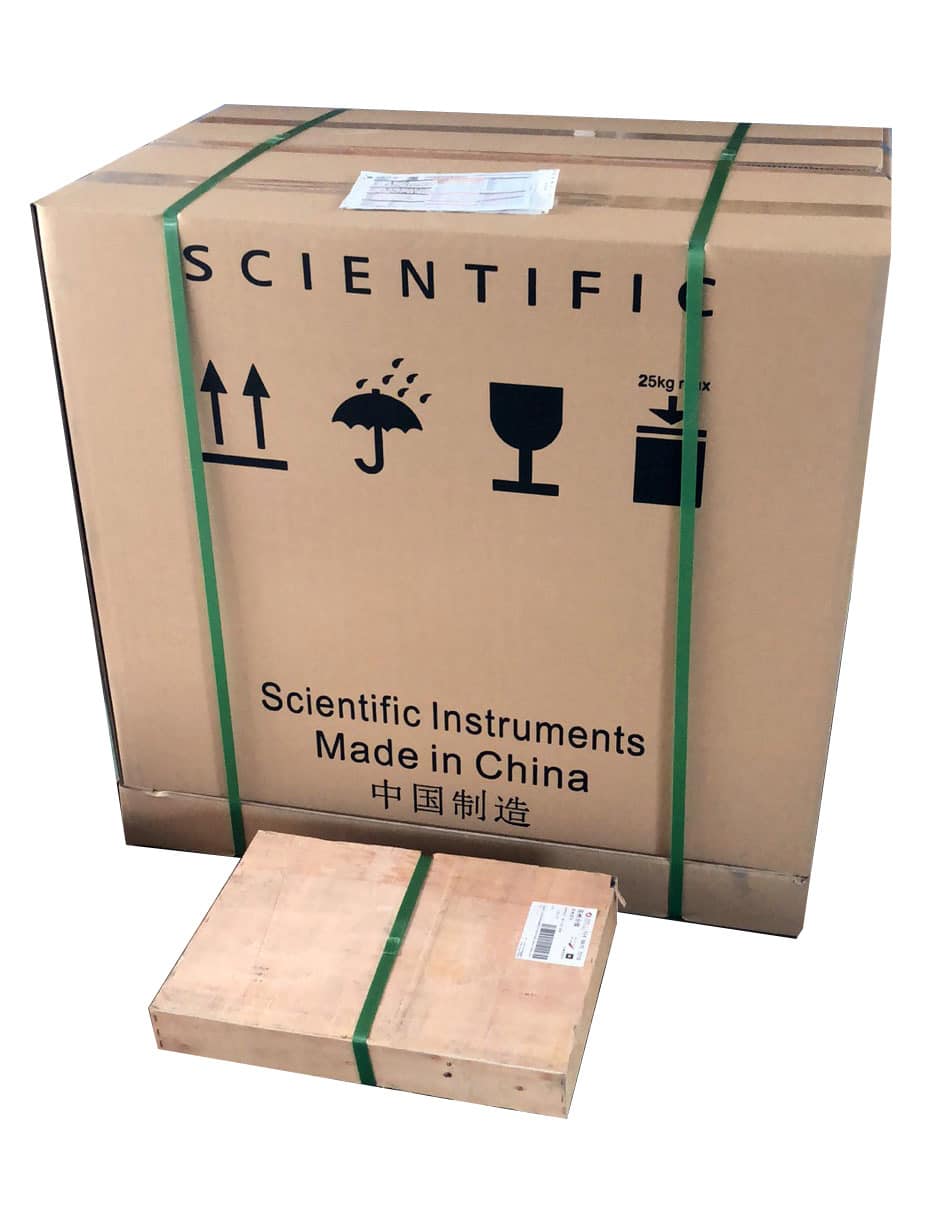

Packaging and Shipping
We pack the JH-BT003 carefully to protect its heavy marble components through long-distance transport:
- Full container load (FCL): The marble worktop and table body are packed separately to keep both parts safe in transit.
- Less-than-container load (LCL): Reinforced honeycomb cartons protect the table from damage during international shipping.
Request a Quote
Need a high-mass, low-vibration platform for your most sensitive balances? Contact us today for pricing, lead times, and full technical details on the JH-BT003 European-style solid marble anti-vibration balance table.
Frequently Asked Questions
Q: What types of balances is the JH-BT003 suitable for?
A: The JH-BT003 is built for one-millionth and hundred-thousandth precision balances. Its solid three-piece marble construction and heavy mass give ultra-sensitive analytical and micro balances a steady, low-vibration surface for reliable readings. If you weigh at the most demanding precision levels, this table is a strong fit.
Q: How does the vibration isolation work?
A: The JH-BT003 combines mass and dedicated isolation layers to keep your balance steady:
- Three pieces of pure natural marble add rigidity and resist movement.
- TPU anti-seismic pads rated to 1000 kg reduce ground-induced vibration.
- Custom 75-degree PU shock absorption pads cushion the marble worktop.
- Embedded connection technology tightens the gap between the worktop and marble foot for a more stable, safer assembly.
Together, these features help calm the floor and ambient vibration.
Q: What does the 50% damping figure mean?
A: It means the table can reduce vibration by approximately 50% under the tested conditions. This figure (Damping Effect 2) is based on ground-based vibration testing performed in our factory and calculated at the maximum value. Actual results depend on your floor, balance type, and surrounding environment, so share your lab details, and we’ll help you estimate performance before you order.
Q: What are the marble specifications and total weight?
A: The JH-BT003 uses a natural marble worktop measuring 900 × 600 × 80 mm and a marble foot measuring 670 × 500 × 80 mm. The complete table weighs about 312 kg. This substantial mass anchors the table firmly in place and helps it absorb vibration.
Q: Does the JH-BT003 need a special floor?
A: Yes. For best performance, install the table on a flat, level floor. A stable, even surface helps the isolation system work as intended and keeps the heavy marble assembly properly supported. If you’re unsure about your floor, contact us, and we’ll advise on your setup.
Q: Can the table be customized for our lab?
A: Yes. As a manufacturer, we can adjust dimensions, marble size, and finish to match your requirements. Just share your balance model and workspace details, and we’ll recommend the best configuration for your needs.
Q: How is the table packed for international shipping?
A: We pack the JH-BT003 carefully to protect its heavy marble components in transit. For full container loads (FCL), the marble worktop and table body are packed separately for added safety. For less-than-container-load (LCL) shipments, we use reinforced honeycomb cartons to reduce the risk of damage during long-distance transport.
Q: How do I request a quote or place an order?
A: Send us your required quantity, destination country, and any customization details. We’ll reply with pricing, lead times, and full technical information. Reach out via our contact form or email, and our team will guide you from there.
