Single Laboratory Water Faucet | Model JH-WL001

Key Features

• Brass body (H63 / 59-1 grade) — Machined from high-copper-content brass with low impurity levels for a rigid, deformation-resistant core that lasts through daily use.
• Epoxy powder-coated exterior — A high-gloss coating that helps the outer body resist routine splash exposure, UV discoloration, and heat in general lab conditions.
• Long-life ceramic cartridge — Tested to 500,000 open/close cycles and rated to 35 bar hydrostatic pressure, for smooth, leak-free flow control over a long service life.
• 360° swivel gooseneck spout — Rotates fully to direct flow across the basin, making it easy to rinse glassware and fill containers while reducing splashing.
• Ergonomic PP handle — Shaped for a comfortable grip and simple one-handed operation, including when wet or gloved.
• Detachable copper + PP nozzle — Lifts out for quick cleaning, keeping the water path clear and easy to maintain.

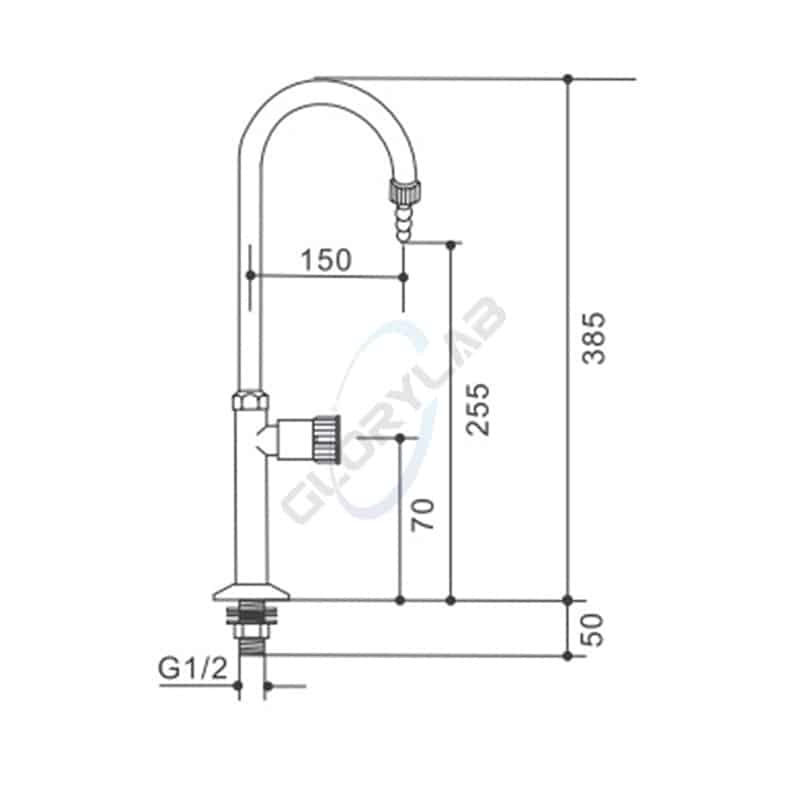

Technical Specifications

Inlet connection size, spout height and reach, and mounting hole dimensions can be confirmed for your project. Share your bench and sink layout, and we’ll advise on exact fit before you order.

Single Outlet vs Multi-Outlet — Which Should You Choose?

The right faucet depends on how many services you need at one point and how much bench space you have:

• Single outlet (JH-WL001): One dedicated cold-water point in a compact, space-saving body. Best for standard rinse sinks, hand-washing stations, and compact benches where only a single water source is needed. Fewer parts also mean fewer failure points and simpler maintenance.
• Multi-outlet (triple-outlet and hot-and-cold taps): Multiple services from one fitting, for benches that need higher flexibility, combined hot-and-cold supply, or several outlets at a shared station.

If you’re unsure, tell us how many outlets each workstation needs and whether hot water is required, and we’ll match the right tap to your layout.

Applications

The JH-WL001 suits chemical, biological, and general research labs that need a reliable single cold-water point:

• General washing — Daily hand washing, glassware rinsing, and routine cleaning in teaching and research labs.
• Equipment rinsing — Rinsing small instruments, fittings, and work surfaces after bench work; the swivel spout reaches into awkward spots.
• Sink-side supply — A dedicated cold-water point for standard rinse sinks and compact wash stations.

Note: The JH-WL001 is a general-purpose bench faucet. It is not a substitute for dedicated emergency eyewash or safety shower equipment.

Installation & Compatibility

The JH-WL001 is designed for bench/deck mounting at a standard sink or wash station. For a clean, secure fit:

• Confirm the mounting hole in your bench or sink matches the faucet base, and that there’s room for the handle and spout to operate freely.
• Check the inlet connection against your bench cold-water supply so the fitting matches without adapters.
• Position the spout so the swivel range covers the basin and flow drains cleanly into the sink.
• Allow clearance above and around the gooseneck for glassware and containers.

Share your sink type, supply connection, and bench layout, and we’ll confirm the right mounting and connection details for your setup.

FAQ

Is the JH-WL001 cold water only?

Yes. It’s a single-outlet, cold-water faucet. If you need combined hot-and-cold supply or several outlets at one point, we also supply hot-and-cold and multi-outlet lab taps — tell us your requirements and we’ll recommend the right model.

When should I choose a single-outlet faucet over a multi-outlet one?

Choose single-outlet where a workstation needs just one dedicated cold-water point and bench space is limited — it’s simpler, more compact, and easier to maintain. Choose multi-outlet where a bench needs several services or hot-and-cold supply from one fitting.

What does the epoxy coating actually protect against?

The high-gloss epoxy coating protects the faucet’s exterior body, helping it resist routine acid and alkali splash, UV discoloration, and heat in general lab conditions. It’s an external protective finish — for specific or aggressive chemical exposure, send us the details and we’ll confirm suitability.

How long does the ceramic cartridge last?

The ceramic disc cartridge is tested to 500,000 open/close cycles and rated to 35 bar hydrostatic pressure. In practice, that means smooth, leak-free control and a long working life, with fewer seal replacements and less maintenance.

Is it easy to operate with wet or gloved hands?

Yes. The ergonomic PP handle allows simple one-handed control, so it stays easy to operate with wet hands or chemical-resistant gloves.

How do I clean the nozzle?

The copper-and-PP nozzle detaches for cleaning. Remove it, rinse and wipe away any residue, then refit it securely. Cleaning it periodically keeps the flow clear and the water path hygienic.

Will it fit my existing sink and bench?

The compact, standard design fits most common lab sinks and benches. Confirm your mounting hole size and inlet connection with our team, and we’ll check compatibility before you order.

How do I request a quote?

Send us your required quantities, mounting type, and inlet connection details. For a larger fit-out, share your bench layout so we can confirm scope and lead time. Let us know if you also need multi-outlet or hot-and-cold taps.

Request a Quote

Fitting out a new lab or upgrading your bench taps? Send us your required quantities, mounting type, and inlet connection details, and our team will prepare a tailored quotation for your JH-WL001 faucets. We also supply triple-outlet and hot-and-cold laboratory taps, so share your full requirements and bench layout, and we’ll help match the right water fittings to your project.
