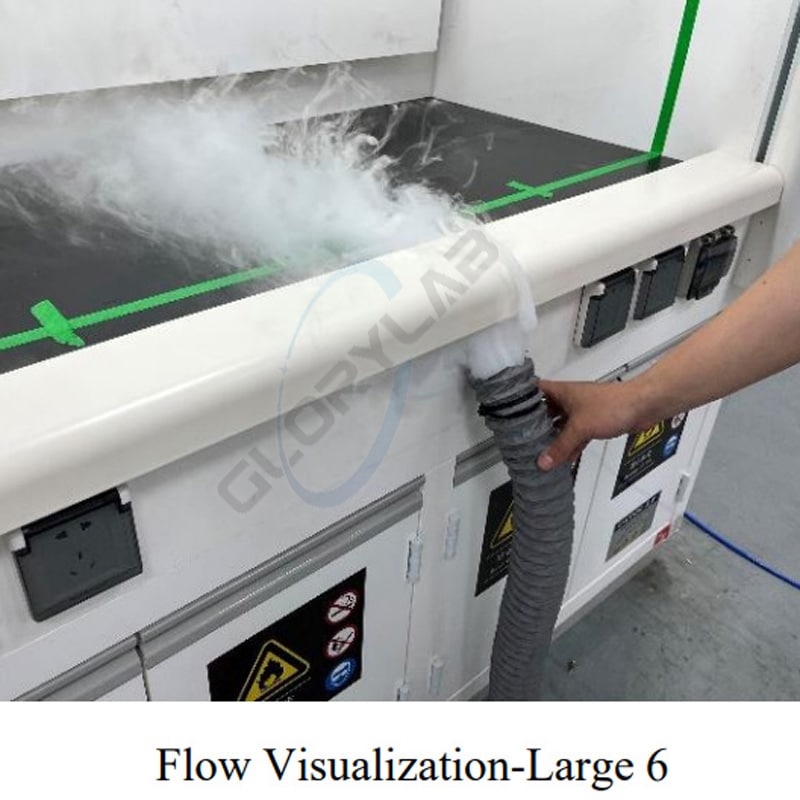

Why ASHRAE 110 Testing Matters
ASHRAE 110 is the industry benchmark for evaluating fume hood containment performance, testing a hood’s ability to prevent hazardous fumes from escaping into the operator’s breathing zone under real-world conditions, including face velocity variation and cross-drafts. A fume hood not tested to this standard may look and perform similarly on paper, but its actual containment reliability remains unverified. For laboratories handling hazardous chemicals, this distinction is critical — a hood that leaks fumes at even trace concentrations can compromise operator safety and regulatory compliance. The JH-FC032 has been tested and shown to approach 0.00ppm leakage under stated conditions, giving lab managers documented proof of containment reliability rather than a manufacturer’s claim alone.
Key Features
- ASHRAE 110-2016 Compliance: Independently tested for containment safety, with leakage performance approaching 0.00ppm under stated conditions.
- Corrosion-Resistant Construction: 5mm anti-UV polypropylene cabinet and liner resist degradation from acids, alkalis, and aging, making it ideal for harsh chemical environments.
- Reliable Airflow Containment: Maintains an average face velocity of 0.3-0.5 m/s to consistently contain fumes and protect operators.
- Customizable Configuration: Available in custom dimensions with a choice of worktop materials — polypropylene, epoxy resin, ceramic, or phenolic resin — to match your lab’s specific chemical exposure profile.
- Integrated Safety & Control Systems: Built-in LED lighting (>400 lux) for clear visibility, an LCD controller for airflow monitoring, leakage protection, an emergency shut-off button, and brand remote fittings for streamlined servicing.
Specifications
| Type | FC1200 | FC1500 | FC1800 | |
| Exterior size(LxWxH) | 1200*850*2350mm | 1500*850*2350mm | 1800*850*2350mm | |
| Internal size(LxWxH) | 960*580*1300mm | 1260*580*1300mm | 1560*580*1300mm | |
| Working height | 850mm | |||
| It can be customized to clients’ actual needs. | ||||
| Material | Cabinet and liner: 5mm anti-ultraviolet radiation PP sheet, which protects against aging. | |||
| Worktop: 15mm polypropylene worktop or 19mm epoxy resin/20mm ceramic/phenolic resin countertop (optional). | ||||
| Sash: PVC or aluminum frame with 5mm toughened safety glass or 5mm PVC glass according to the requirements of experiments. The handle is made of aluminum or PVC.
The height can be adjusted freely and stopped at any position. |
||||
| Sash max opening | 780mm | |||
| Power supply | 220/380V, 50/60Hz, single or three phase | |||
| Noise | < 65 dB | |||
| Air face velocity | Average 0.3~0.5m/s | |||
| Illumination | >400 LUX, LED lighting, insulated from air by tempered glass | |||
| Diameter of exhaust outlet | 250mm or 315mm | |||
| Standard accessories | LCD controller, LED lamp, brand remote water and gas fittings with safety function, 4 universal/British/US/European sockets, leakage protector, emergency button, PP cup sink, etc. | |||

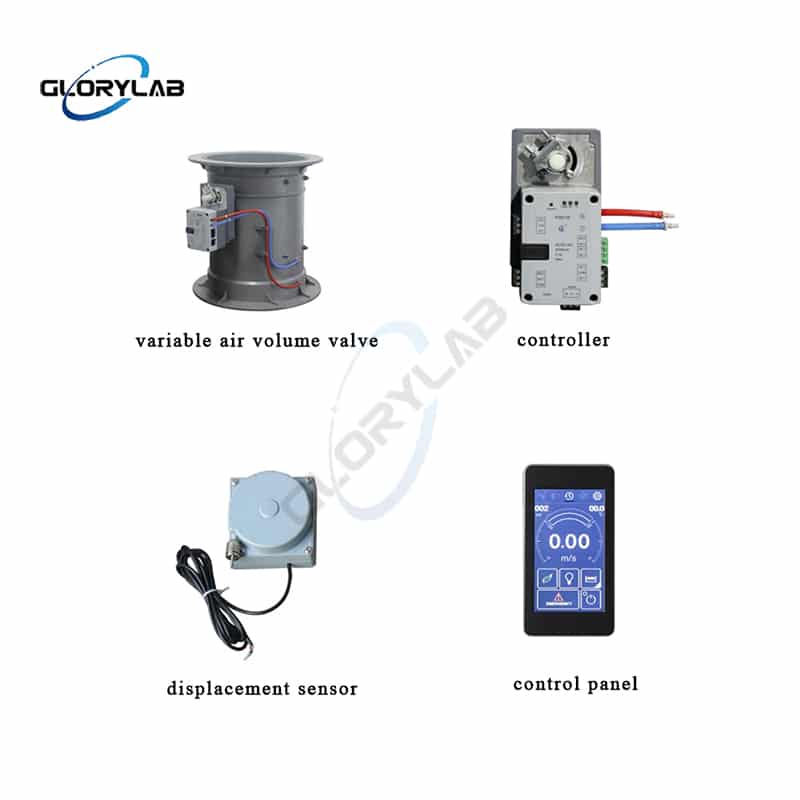

| Optional accessories | Small or large centrifugal fan with adjustable speed, 4 meters of PVC flexible pipe, France intelligent controller, VAV system, motorized sash, etc. | |||
| Packing size | Upper cabinet | 1250*900*1650mm | 1550*900*1650mm | 1850*900*1650mm |
| Base cabinet | 1250*570*1000mm | 1250*570*1000mm | 1250*570*1000mm | |
Lab Accessories for Fume Cupboard:
Frequently Asked Questions
How does the JH-FC032 differ from your standard PP fume hood, the JH-FC009?
While both models share the same corrosion-resistant polypropylene construction, the JH-FC032 has been independently tested to ASHRAE 110-2016 standards, giving documented proof of containment performance. This makes it the preferred choice for labs requiring verified safety compliance alongside chemical resistance.
Is the JH-FC032 suitable for cleanroom environments?
Yes. The polypropylene construction avoids the metal components restricted in many cleanroom protocols, while the hood’s tested containment performance helps it meet the strict environmental control requirements typical of cleanroom facilities.
What kind of chemical environments is this fume hood designed for?
The JH-FC032 is engineered for high-intensity acid and alkali environments, including applications involving hydrofluoric acid, strong bases, and other corrosive reagents where metal fume hoods would degrade over time.
Can the JH-FC032 be customized to fit our lab layout?
Yes. Dimensions and worktop material are customizable, so you can configure the hood for your specific facility layout and chemical-handling requirements.
Does the JH-FC032 come with documentation to support procurement or compliance reviews?
Yes. As a factory-based manufacturer, Glorylab provides full traceability documentation for the production process, including test reports supporting ASHRAE 110 compliance, to support your procurement, compliance, and project handover requirements.
