Features

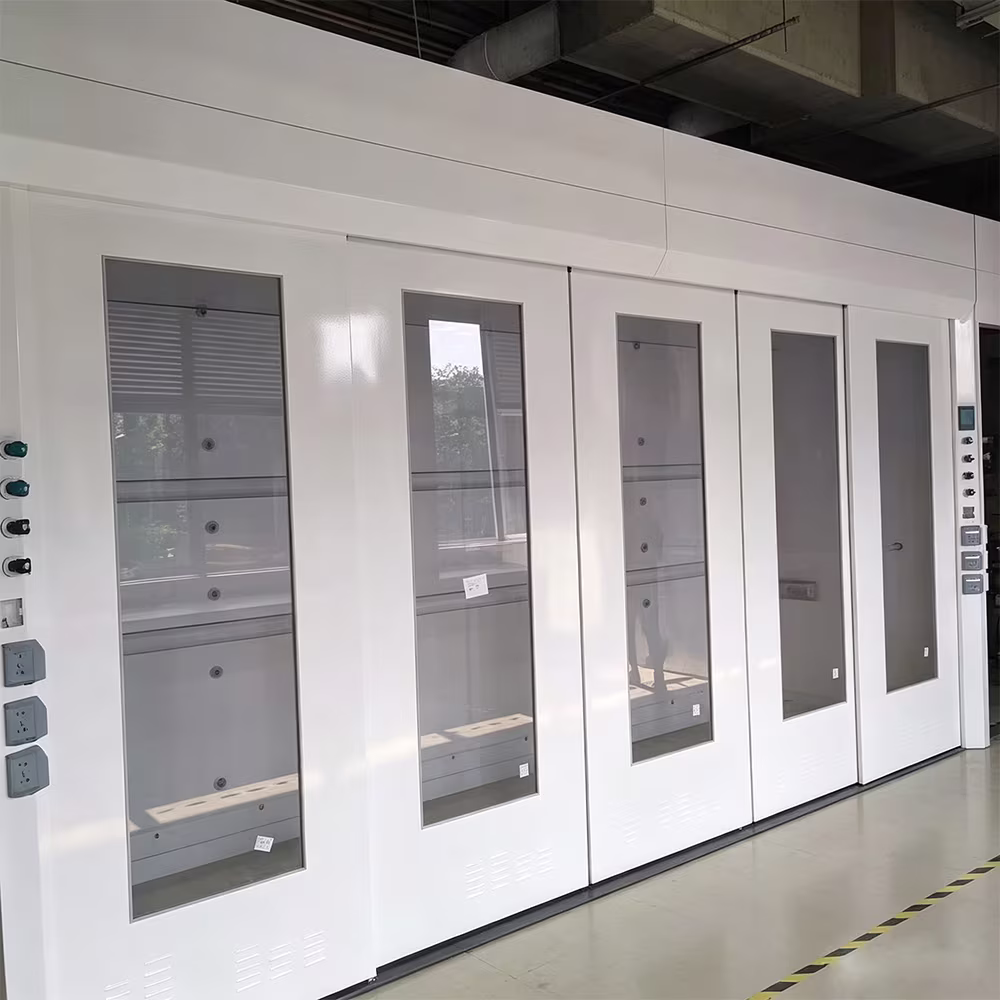

Horizontal Sliding Sash
A movable door system with 6mm anti-explosion glass gives you flexible, localized access control—something standard vertical sashes simply can’t offer.
Extra-Wide Walk-In Chamber
With a standard width of 2400mm, the JH-FC028 comfortably accommodates oversized apparatus and floor-standing reactors that won’t fit in conventional fume hoods.
Durable, Low-Maintenance Construction
A 1.2mm cold-rolled steel exterior with AkzoNobel epoxy resin powder coating and 5mm chemical-resistant lining ensures long-term durability, while removable side panels make internal maintenance straightforward.
Smooth, Reliable Operation
A pulley and synchronizing system, tested for long-term durability, keeps the sliding sash moving smoothly, shift after shift.
Integrated Controls & Safety Features
An LCD control panel (with an optional French version featuring an airflow alarm) keeps critical information at your fingertips, while integrated lighting (minimum 400 lux) and multi-functional waterproof sockets support safe, efficient operation.
Built for Complex Projects
Customizable dimensions let you tailor the JH-FC028 to your laboratory layout and equipment.
Technical Specifications
|
Specification |
Detail |
|---|---|
|
Model |
JH-FC028 |
|
Structure |
Walk-in, floor-standing |
|
Sash Type |
Horizontal sliding sash (6mm anti-explosion glass) |
|
Exterior Material |
1.2mm cold-rolled steel with AkzoNobel epoxy resin powder coating |
|
Interior Lining |
5mm chemical-resistant compact solid panel |
|
Standard Chamber Width |
2400mm (customizable for specific needs) |
|
Lighting |
Integrated, minimum 400 lux |
|
Control Panel |
LCD (optional French version with airflow alarm) |
|
Sockets |
Multi-functional and waterproof |
|
Sliding Mechanism |
Pulley and synchronizing system |
Frequently Asked Questions
Can the JH-FC028 be customized for non-standard lab layouts?
Yes. While the standard chamber width is 2400mm, we can customize dimensions to accommodate complex laboratory projects and specific equipment requirements.
How does the horizontal sliding sash differ from a traditional vertical sash?
A horizontal sliding sash allows you to open specific sections of the chamber independently, giving you more precise, localized access control. This is especially useful when working around large, floor-standing equipment where full-width access isn’t always necessary.
What maintenance does the JH-FC028 require?
The unit has removable side panels, allowing easy access to internal utilities for routine maintenance without extensive disassembly.
Is the airflow alarm feature standard?
The airflow alarm is available with the optional French version of the LCD control panel. Contact our team for details on configuring this feature for your project.
